Leírás
4/3″ Support

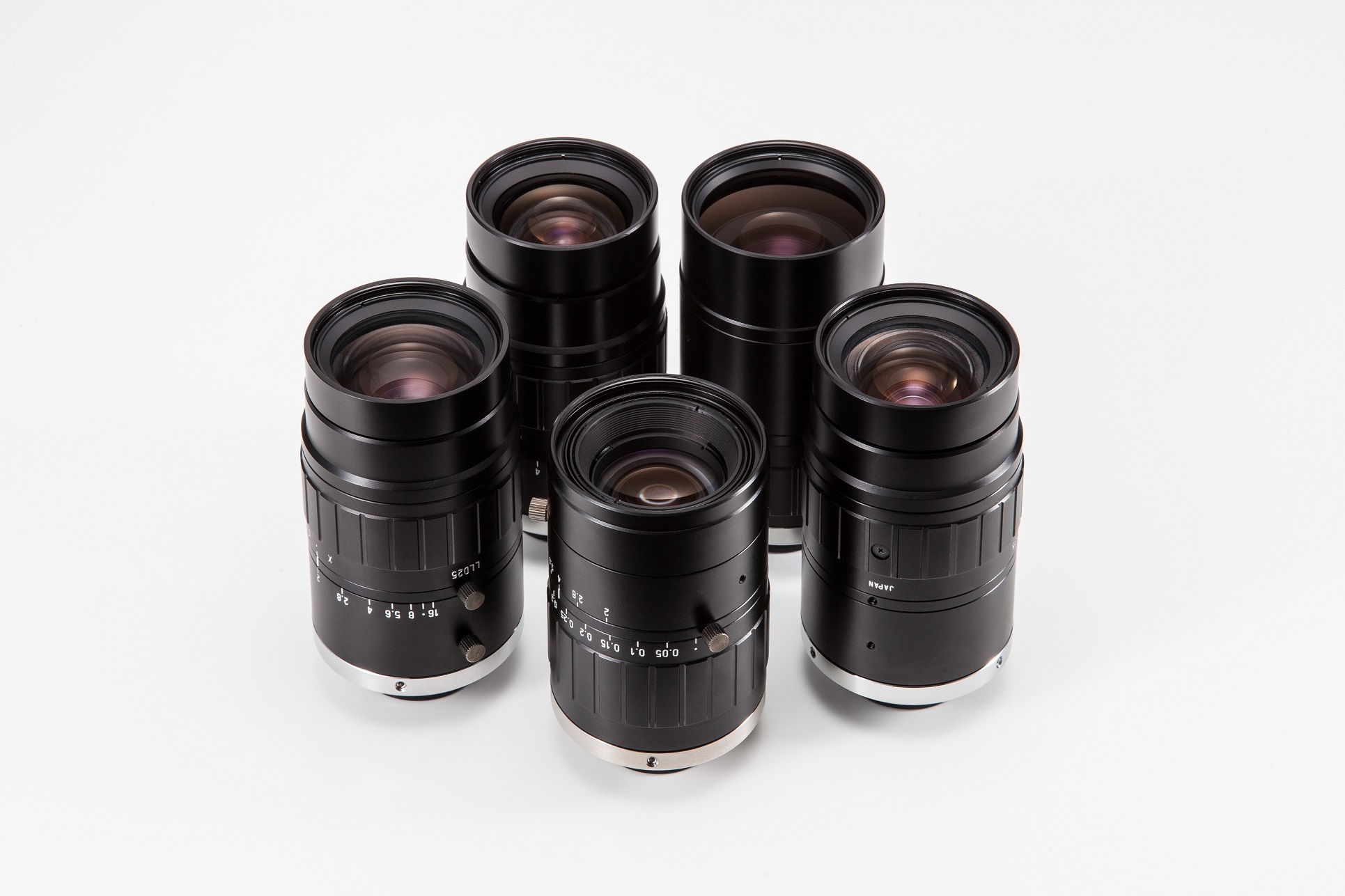

Distortionless Macro Lens
9 models from f10mm to f50mm available, a floating mechanism adopted to maintain performance over the entire range
Product Specs
Distortionless and High Performance
Machine Vision Macro Lens with a floating system
What is floating system?
Normally lenses shift just a single group of elements internally when focusing. Having additional floating elements (see diagram) can significantly improve the close-focus performance, Due to the floating component being separate from the group of focusing lens elements, aberrations caused by lens extensions are significantly reduced. Macro lenses make exceptionally great use of this system because they cover a wide range of focus distances in a wide-angle.
| Nagyítás | (∞) 0.05x- 0.3x |
| Tárgytávolság (mm) | 706.6-129.5 |
| Működő F/# | 2.2-3.0 |
| TV torzítás | -0.15% – -0.10% |
| Lebegő | ○ |
| Modellcsalád szenzor méret | 1/4″,1/3″,1/2″,1/1.8″,2/3″,1″,1.1″,4/3″ |
A funkciókkal kapcsolatos további információkért keresse fel a VST Termék Dokumentációt.
