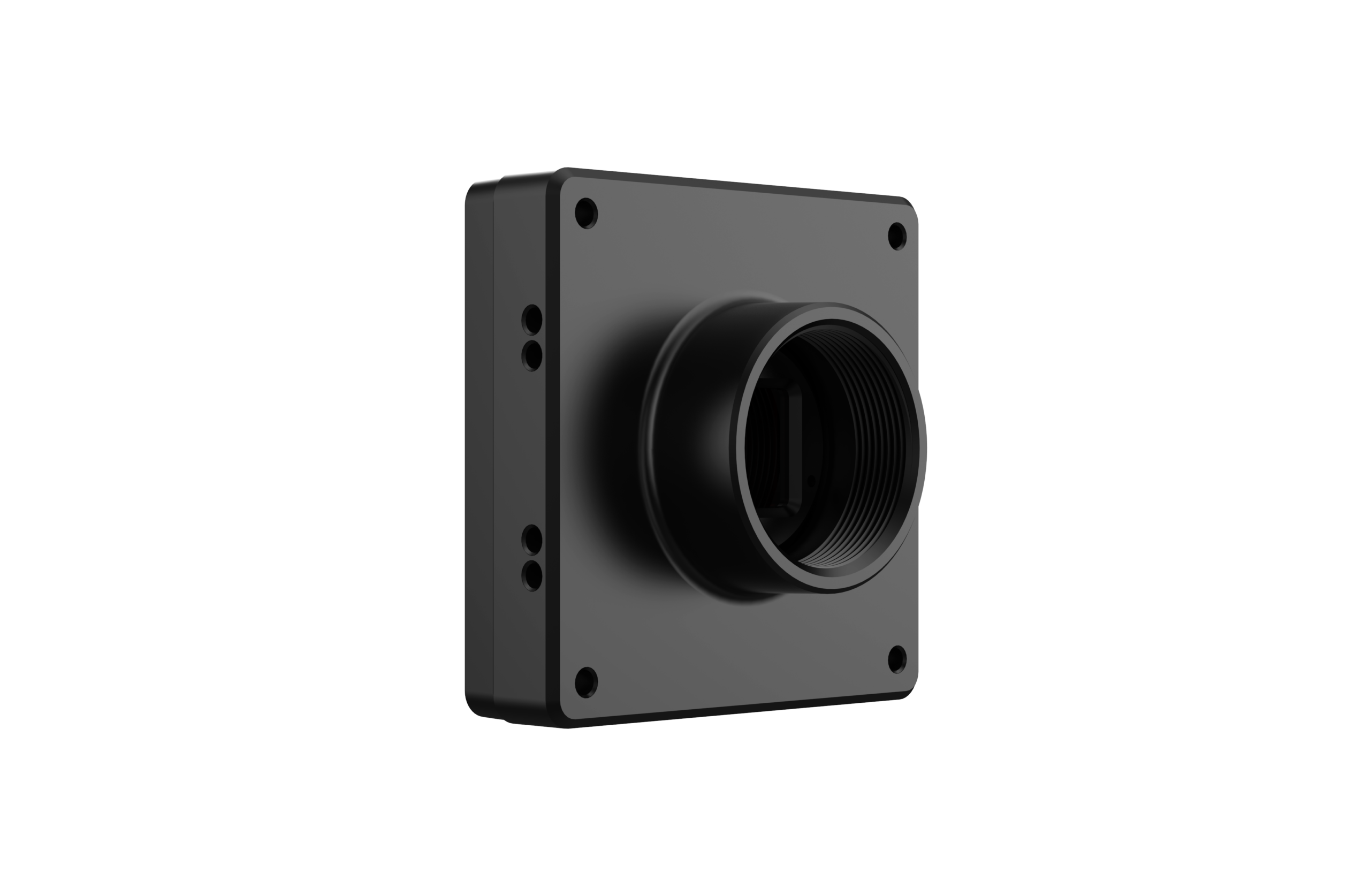

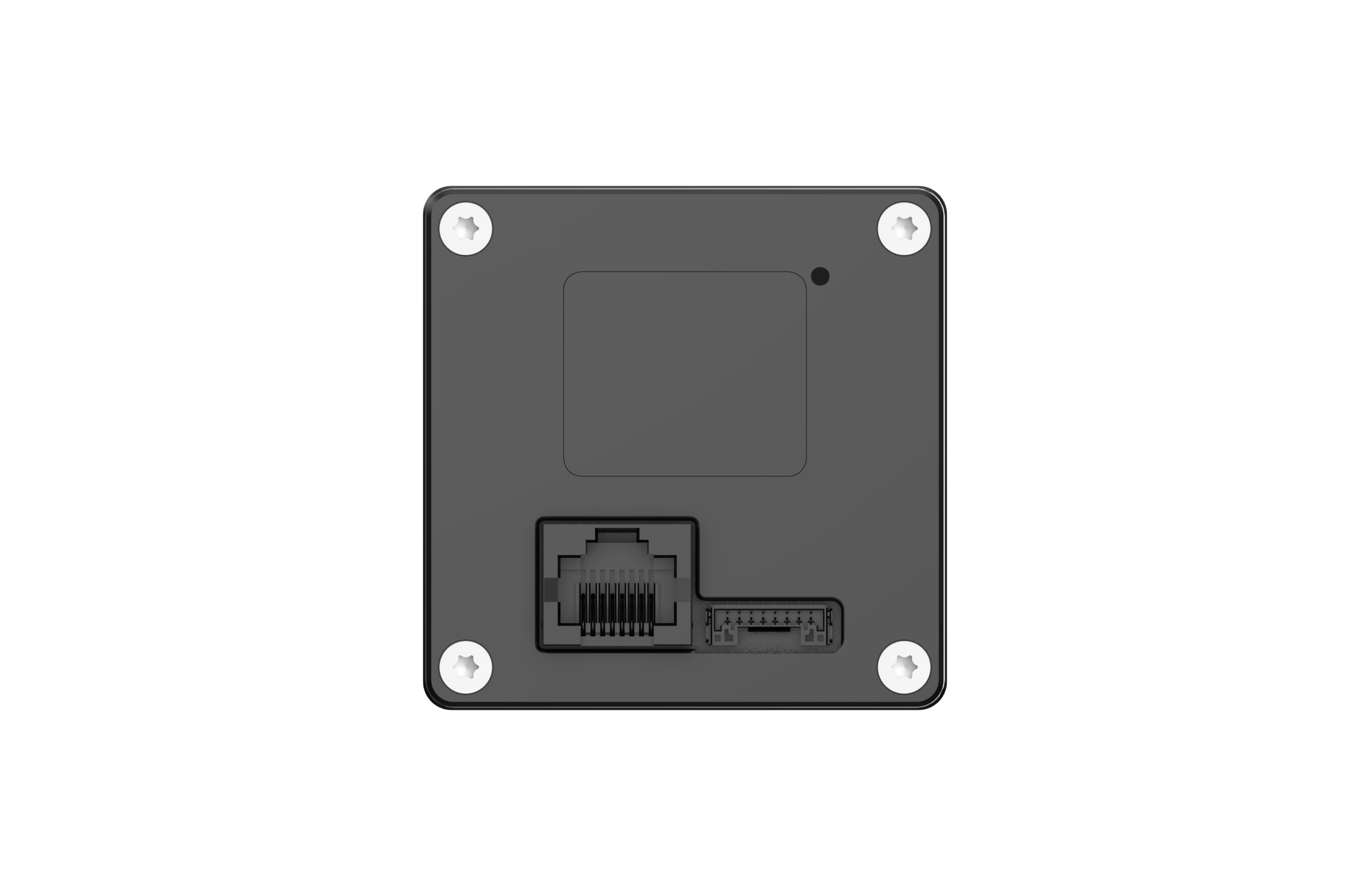

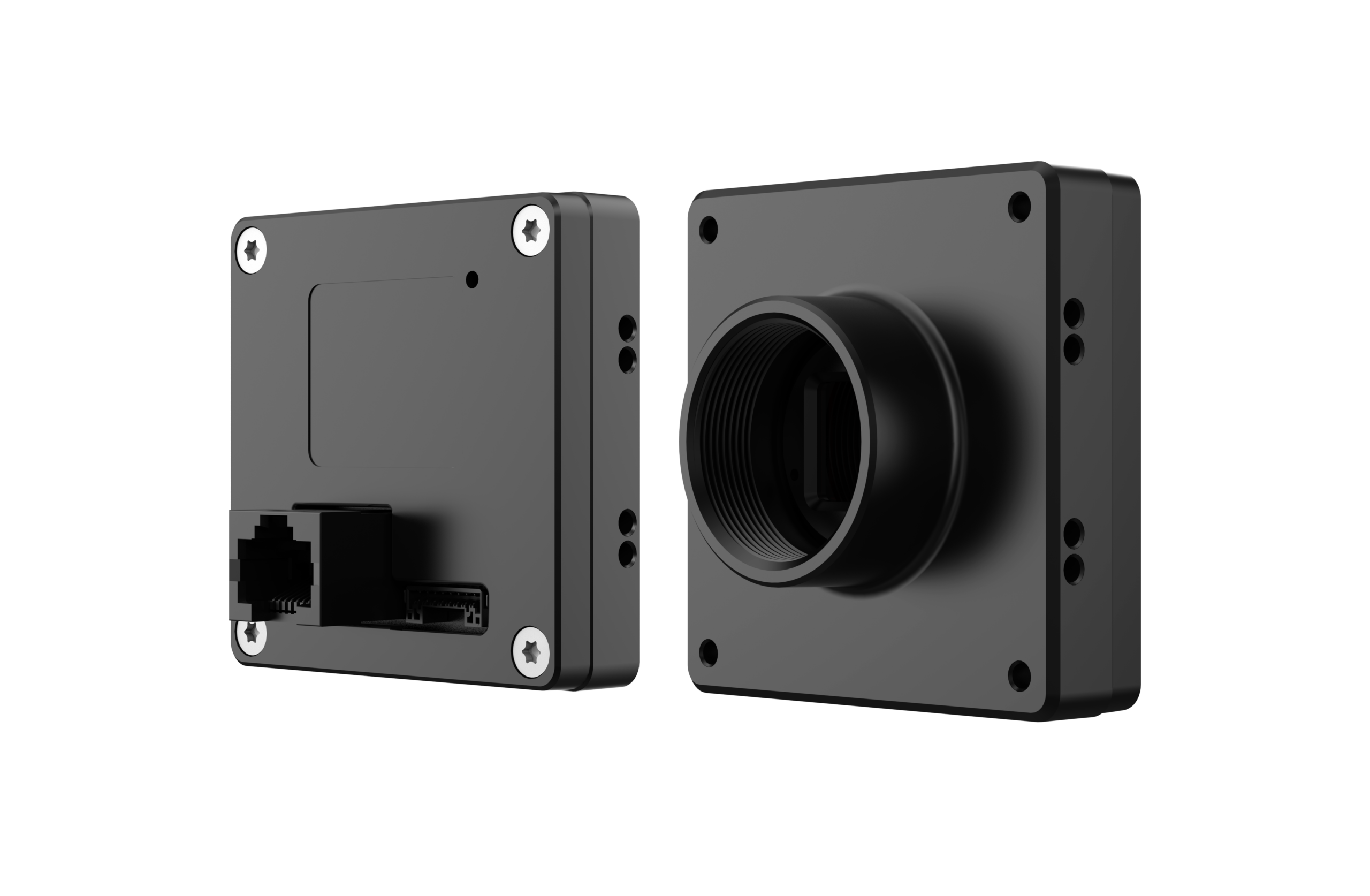

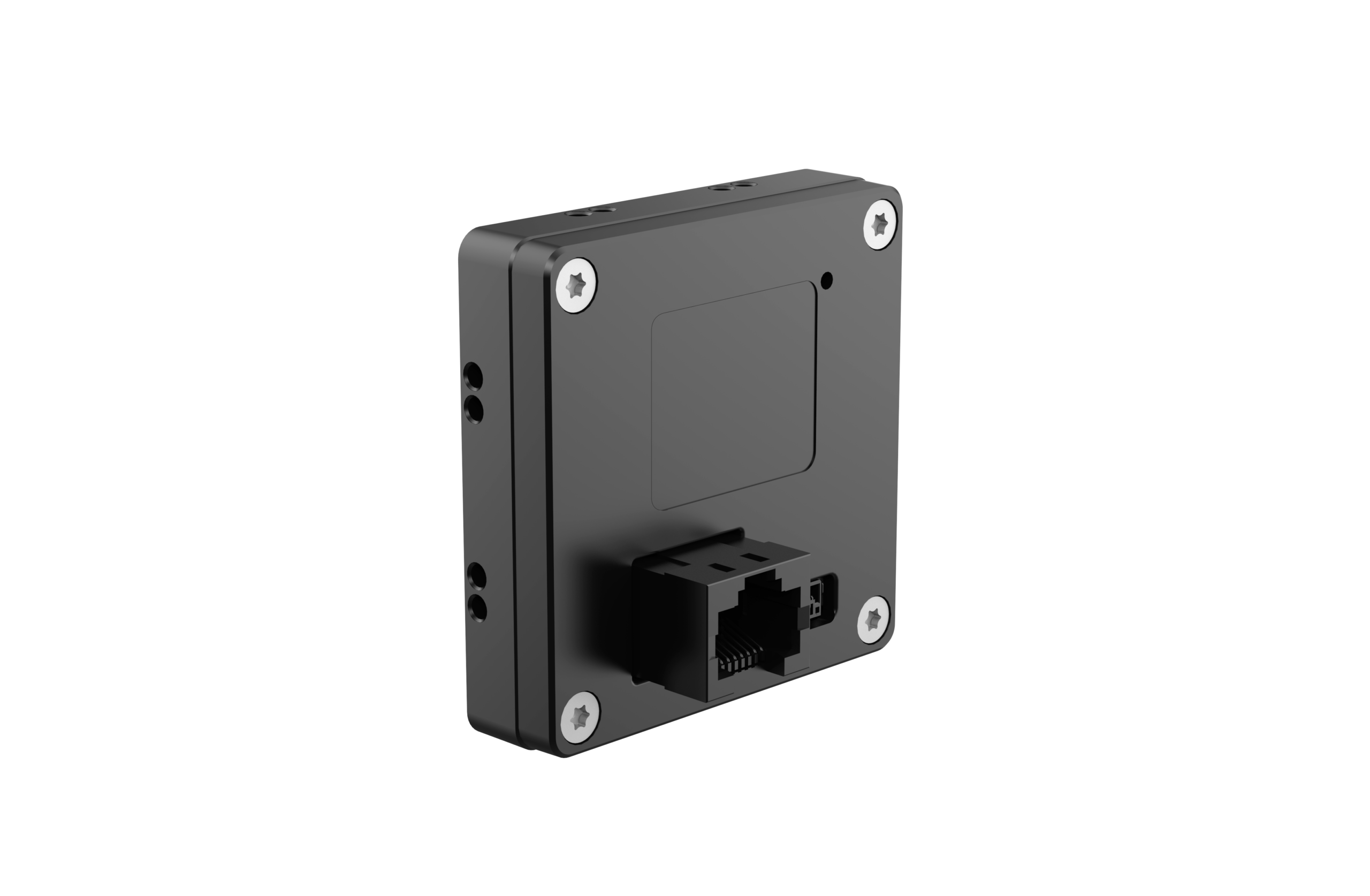

AB3600MG000E

Sensor	IMX178
Image Sensor	1/1.8″CMOS
Shutter	Rolling
Resolution	3072 × 2048
Frame Rate	18 fps
Bit Depth	10
Mono/Color	Mono
Pixel Size	2.4 μm × 2.4 μm
Pixel	6 MP
S/N Ratio	＞38 dB
Dynamic Range	60 dB
Image Format	Mono8/10/10Packed/12/12Packed
Binning	Support
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	25μ s~1 s
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	256 MB
Port	GigE
GPIO Interface	1 × Opto-isolated input, 1 × Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	DC power supply by 8 pin Socket connector, with voltage range from 9V to 24V
Power Consumption	12V≈3.4W
Product Dimensions	55 mm × 55 mm × 14 mm(not including lens mount and rear case connector)
Net Weight	60 g
Storage Temperature	-30℃~+80℃
Operating Temperature	0℃~+50℃

Leírás

Binning	Support
Bit depth	10
Dynamic range	60 dB
Exposure time	25u s~1 s
Frame rate	18 fps
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	1 x Opto-isolated input, 1 x Opto-isolated output, 1 configurable input and output
Image buffer	256 MB
Image format	Mono8/10/10Packed/12/12Packed
Image sensor	1/1.8"CMOS
Foglalat	C-mount
Pixel	6 MP
Pixel size	2.4 um x 2.4 um
Port	GigE
Áramfogyasztás	12V≈3.4W
Power supply	DC power supply by 8 pin Socket connector, with voltage range from 9V to 24V
Resolution	3072 x 2048
Roi	Support
Sensor	IMX178
Shutter	Rolling
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Mono
S/n ratio	>38 dB
Interfész	USB3.0
Product line	Board-level Series
