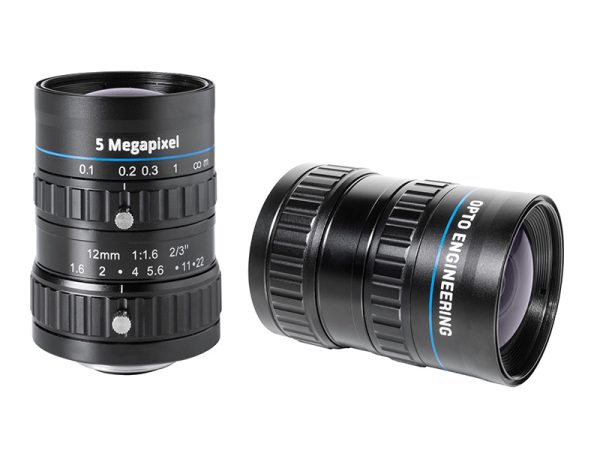

EN5MP1216

EN5MP1216

Specification Value
Focal length 12 (mm)
Magnification 0.107 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 27.7 (deg)
1/2″ 36.4 (deg)
2/3″ 48.6 (deg)
1/3″ 44.86 x 33.64
1/2″ 59.81 x 44.86
2/3″ 79.44 x 66.26
Working distance range 0.1 – inf (m)
f/N 1.6 – 22
Back focal length 12.42 (mm)
Distortion on 1/3″ 0.38 (%)
Distortion on 1/2″ 0.53 (%)
Distortion on 2/3″ 0.35 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M37.5 x 0.5
Outer diameter 43.3 (mm)
Length 58.5 (mm)
Mass 178 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Ajánlatot kérek
Kategória: Címke: Márka:

Leírás

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

További információk

Foglalat

C-mount
Operating temperature

-10-+50 (°C)
Optmag

0.107 (x)
Gyártó

Opto
Zoom ratio

0.107 (x)
Magnification

0.107 (x)
Szenzor méret

2/3″
Set screw thread

M2
Mass

178 (g)
Képkör

11.0 (mm)
Length

58.5 (mm)
Fókusztáv

12 (mm)
Back focal length

12.42 (mm)
Working distance range

0.1 – inf (m)
F/n

1.6 – 22
Distortion on 1 3

0.38 (%)
Distortion on 1 2

0.53 (%)
Distortion on 2 3

0.35 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M37.5 x 0.5
Outer diameter

43.3 (mm)
Mount

C
Fókusztáv (intervallum

12
Szenzor méret

2/3"
