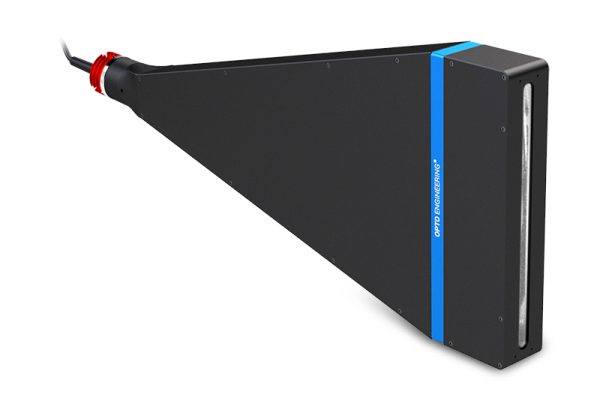

LTCL4K180-W

Specification	Value
Minimum beam shape dimension	187 x 10 (mm)
Working distance range	120 – 450 (mm)
Light color, peak wavelength	white, 6000 K
Spectral FWHM	– (nm)
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED forward voltage typical (max)	2.8 (-) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Length	482.6 (mm)
Width	206.0 (mm)
Height	38.5 (mm)
Mass	3008 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 2

Leírás

Beam shape is not circular. See Tech Info for minimun beam dimensions.
Opto Engineering® recommends green light for high precision measurement applications.
Tolerance ± 10%.
At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
In continuous mode (non-pulsed).
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info).
Nominal value, with no spacers in place.

Mass	3008 (g)
Installation	Indoor use only
Szín	white, 6000 K
Gyártó	Opto
Minimum beam shape dimension	187 x 10 (mm)
Connector	M8
Supply voltage	12-24 (V)
Height	38.5 (mm)
Width	206.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Length	482.6 (mm)
Color	Fehér
Working distance range	120 – 450 (mm)
Áramfogyasztás	2.5 (W)
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 2
Cables	CB244P1500 included
Led fwd volt (typ/max)	2.8 (-) (V)
Max led forward current	350 (mA)
Max pulse current	2000 (mA)
