Leírás
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%.
- Constant voltage power supply.
- Constant current power supply.

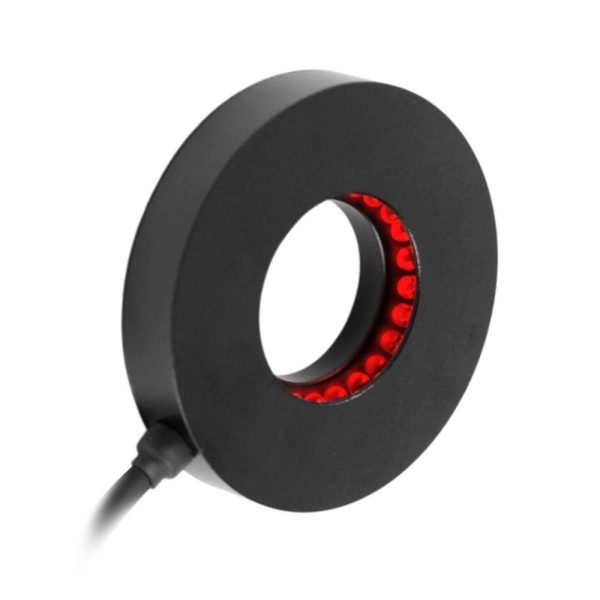

LTZZO050-90-1-R-24V
| Specification | Value |
|---|---|
| Illumination area outer diameter | 27 (mm) |
| Illumination area inner diameter | 24 (mm) |
| Optimal working distance | 5-15 (mm) |
| Number of LED rows | 1 |
| Emission angle | 90 (deg) |
| Light color, peak wavelength | red, 630 nm |
| Illuminance | 3777 (lux) |
| Supply voltage | 24 (V) |
| Current | 45 (mA) |
| Power consumption | 1.1 (W) |
| Channels | 1 |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 270 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | JST SMR-03V |
| Cable length | 500 (mm) |
| Outer diameter | 56 (mm) |
| Inner diameter | 24 (mm) |
| Height | 10.5 (mm) |
| Mass | 50 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
További információk
| Kábelhossz | 500 (mm) |
|---|---|
| Risk group (cei 62471) | Exempt |
| Szín | red, 630 nm |
| Gyártó | Opto |
| Inner diameter | 24 (mm) |
| Connector | JST SMR-03V |
| Supply voltage | 24 (V) |
| Height | 10.5 (mm) |
| Operating temperature | 0-45 (°C) |
| Outer diameter | 56 (mm) |
| Color | Vörös |
| Operation power source | 45 (mA) |
| Operating relative humidity | 20-85, non condensing (%) |
| Mass | 50 (g) |
| Current | 45 (mA) |
| Illuminance | 3777 (lux) |
| Áramfogyasztás | 1.1 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Illumination area (outer) | 27 (mm) |
| Illumination area (inner) | 24 (mm) |
| Optimal working distance | 5-15 (mm) |
| Number of led rows | 1 |
| Emission angle | 90 (deg) |
| Channels | 1 |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 270 (mA) |
