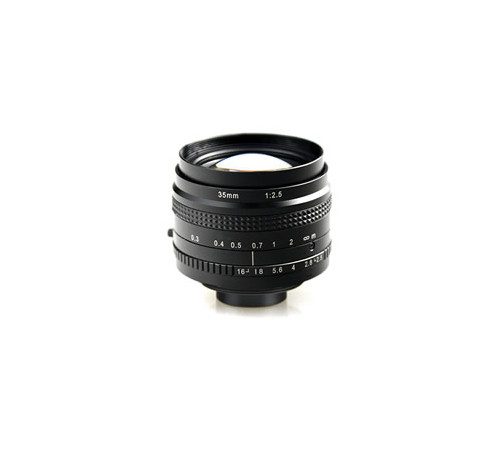

RT-A-3525MT

RT-A-3525MT

Specification Value
Focal length 35 (mm)
Image circle diameter 43 (mm)
Max sensor size 35 mm Full Frame
Full Frame 62.4 (deg)
Working distance range 0.3 – inf (m)
f/N 2.5 – 16
Back focal length 34.4 (mm)
Distortion 3.0 (%)
Iris control Manual
Focus control Manual
Mount M42x1 FD 46.5
Filter thread M52 x 0.75
Outer diameter 60.0 (mm)
Length 43.7 (mm)
Mass 230 (g)
Ajánlatot kérek
Kategória: Címke: Márka:

Leírás

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Percent deviation of the real image compared to an ideal, undistorted image.
  3. Measured from the front end of the mechanics to the camera flange at infinity focus.

További információk

Foglalat

M42x1 FD 46.5
F/n

2.5 – 16
Operation power source
Gyártó

Opto
Outer diameter

60.0 (mm)
Filter thread

M52 x 0.75
Focus control

Manual
Iris control

Manual
Back focal length

34.4 (mm)
Fókusztáv

35 (mm)
Working distance range

0.3 – inf (m)
Full frame

62.4 (deg)
Distortion

3.0 (%)
Length

43.7 (mm)
Képkör

43 (mm)
Mass

230 (g)
Color
Fókusztáv (intervallum

35
Szenzor méret

35mm
