Leírás
- Working distance: distance between the front end of the mechanics and the object.
- Measured from the front end of the mechanics to the camera flange at infinity focus.

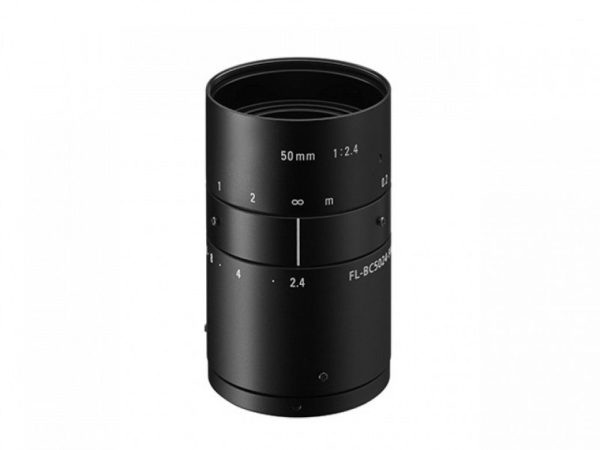

RT-FL-BC5024-9M
| Specification | Value |
|---|---|
| Focal length | 50 (mm) |
| Image circle diameter | 16.0 (mm) |
| Max sensor size | 1″ |
| 1/1.8″ | 8.2 (deg) |
| 2/3″ | 10.1 (deg) |
| 1″ | 14.6 (deg) |
| Working distance range | 0.2 – inf (m) |
| f/N | 2.4 – 22 |
| Back focal length | 18.8 (mm) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C |
| Filter thread | M40.5 x 0.5 |
| Outer diameter | 42.0 (mm) |
| Length | 69 (mm) |
| Mass | 166 (g) |
| Set screw thread | M1.4 x 2.2 |
További információk
| Foglalat | C-mount |
|---|---|
| Working distance range | 0.2 – inf (m) |
| Operation power source | |
| Gyártó | Opto |
| Set screw thread | M1.4 x 2.2 |
| Outer diameter | 42.0 (mm) |
| Filter thread | M40.5 x 0.5 |
| Focus control | Manual |
| Iris control | Manual |
| Back focal length | 18.8 (mm) |
| F/n | 2.4 – 22 |
| Fókusztáv | 50 (mm) |
| Length | 69 (mm) |
| Képkör | 16.0 (mm) |
| Mass | 166 (g) |
| 2 3 | 10.1 (deg) |
| 1 1 8 | 8.2 (deg) |
| Color | |
| Fókusztáv (intervallum | 50 |
| Szenzor méret | 1" |
