Leírás
- Working distance: distance between the front end of the mechanics and the object.
- Measured from the front end of the mechanics to the camera flange at infinite focusing.

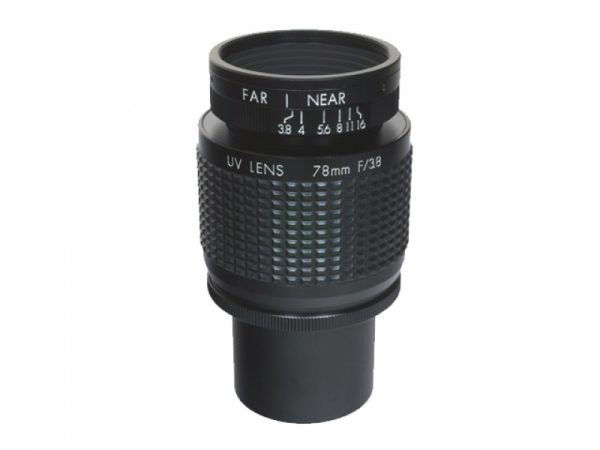

RT-FL-BC7838-VGUV
| Specification | Value |
|---|---|
| Focal length | 78 (mm) |
| Image circle diameter | 16.0 (mm) |
| Max sensor size | 1″ |
| 1/2″ | 4.7 (deg) |
| 2/3″ | 6.5 (deg) |
| 1″ | 9.5 (deg) |
| Working distance range | 0.44 – inf (m) |
| Wavelength range | 230-800 (nm) |
| f/N | 3.8 – 16 |
| Back focal length | 71.3 (mm) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C |
| Filter thread | M49 x 0.75 |
| Outer diameter | 62.5 (mm) |
| Length | 109.3 (mm) |
| Mass | 446 (g) |
További információk
| Foglalat | C |
|---|---|
| Fókusztáv | 78 (mm) |
| Operation power source | |
| Gyártó | Opto |
| Outer diameter | 62.5 (mm) |
| Filter thread | M49 x 0.75 |
| Focus control | Manual |
| Iris control | Manual |
| Back focal length | 71.3 (mm) |
| F/n | 3.8 – 16 |
| Working distance range | 0.44 – inf (m) |
| Wavelength range | 230-800 (nm) |
| Length | 109.3 (mm) |
| Képkör | 16.0 (mm) |
| Mass | 446 (g) |
| 2 3 | 6.5 (deg) |
| 1 2 | 4.7 (deg) |
| Color | |
| Fókusztáv (intervallum | 78 (mm) |
| Szenzor méret |
