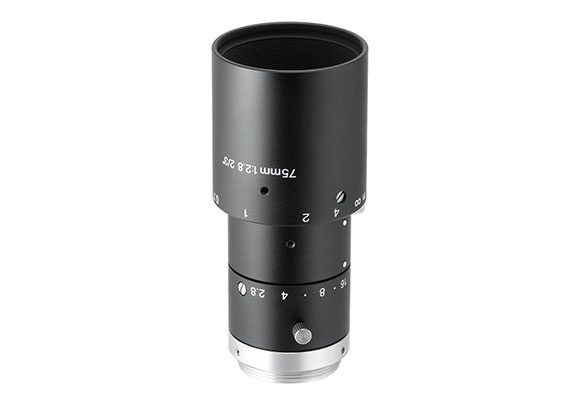

RT-M7528-MPW3

RT-M7528-MPW3

Specification Value
Focal length 75 (mm)
Magnification 0.188 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/2.5″ 5.4 (deg)
1/1.8″ 6.9 (deg)
2/3″ 8.4 (deg)
1/2.5″ 30.32 x 22.77
1/1.8″ 37.93 x 28.35
2/3″ 45.21 x 37.71
Working distance range 0.4 – inf (m)
f/N 2.8 – 16
Back focal length 14.6 (mm)
Distortion on 1/2.5″ 0.12 (%)
Distortion on 1/1.8″ 0.21 (%)
Distortion on 2/3″ 0.33 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M34 x 0.5
Outer diameter 36.0 (mm)
Length 75.0 (mm)
Mass 102 (g)
Set screw thread M1.7 x 3.5
Ajánlatot kérek
Kategória: Címke: Márka:

Leírás

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

További információk

Foglalat

C-mount
Zoom ratio

0.188 (x)
Optmag

0.188 (x)
Operation power source
Gyártó

Opto
Distortion on 1 1 8

0.21 (%)
1 2 5

30.32 x 22.77
1 1 8

37.93 x 28.35 (mm x mm)
Mass

102 (g)
Képkör

11.0 (mm)
Length

75.0 (mm)
Fókusztáv

75 (mm)
Working distance range

0.4 – inf (m)
F/n

2.8 – 16
Back focal length

14.6 (mm)
Distortion on 2 3

0.33 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M34 x 0.5
Outer diameter

36.0 (mm)
Set screw thread

M1.7 x 3.5
Distortion on 1 2 5

0.12 (%)
Color
Fókusztáv (intervallum

75
Szenzor méret

2/3"
