Leírás
- Flat Light
- High brightness and high uniformity flat lighting.
- Ideal for backlighting, silhouette detection, and transmissive illumination.
- *The input voltage is 24.0V.

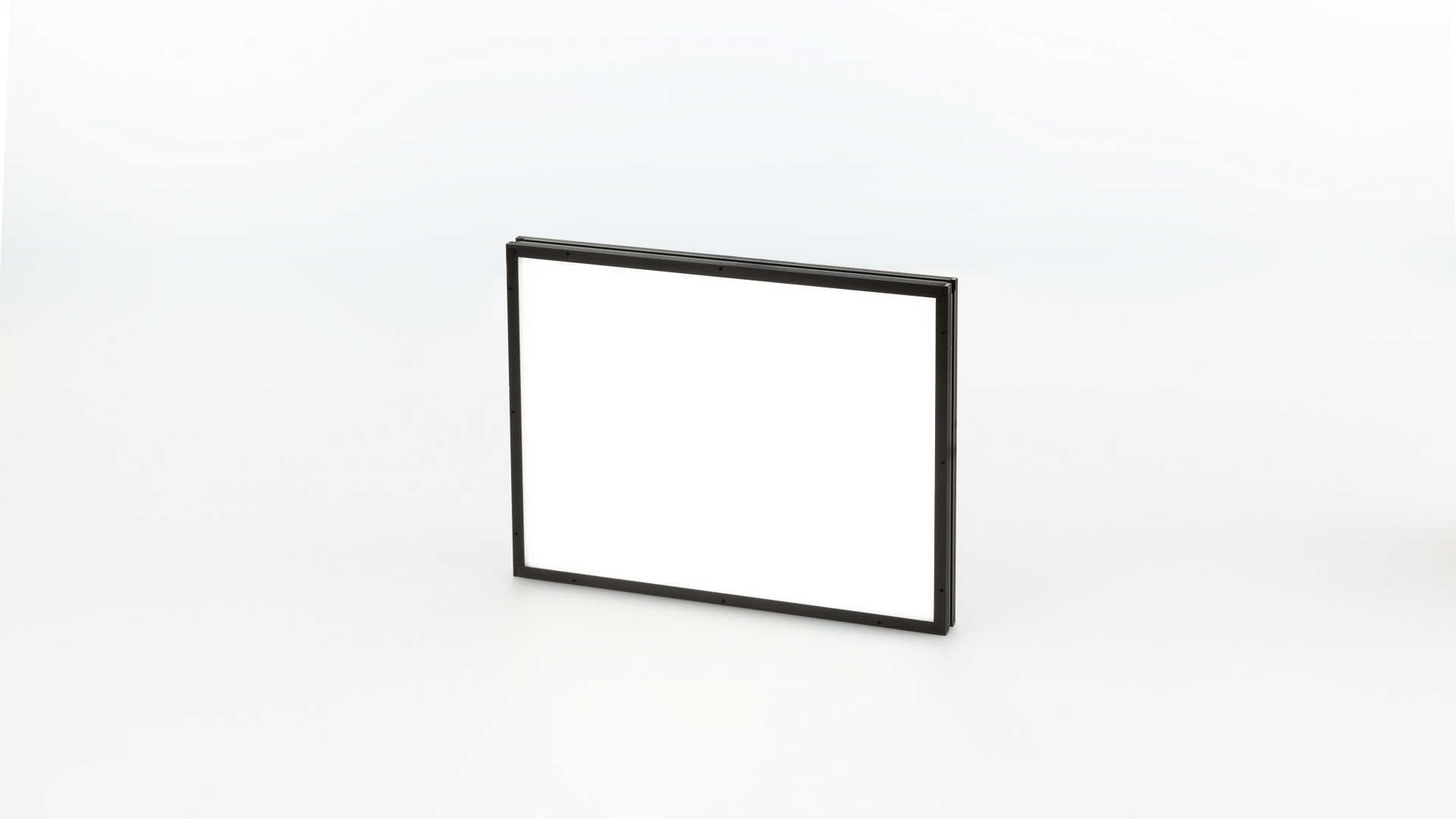

VDF-200150B
- Flat Light
- High brightness and high uniformity flat lighting.
- Ideal for backlighting, silhouette detection, and transmissive illumination.
- *The input voltage is 24.0V.
További információk
| Case_material | Aluminium alloy |
|---|---|
| Color | Kék |
| Connector_assignment | SMR-03V-B (JST) / 1pin: V+, 2pin: NC, 3pin: V- |
| Cooling_method | Natural Air-Cooling |
| Current_consumption | 0.96 A |
| Environmental_declaration | RoHS Compliant |
| Height | 15 mm |
| Model | VDF-200150B |
| Operating_environment | Temp 0 to 40 °C / Humidity 20~85% (with no condensation) |
| Operating_voltage | DC 24 V |
| Power_consumption | 26.5 W |
| Series | VDF Series |
| Storage_environment | Temp -20 to 60 °C / Humidity 20~85% (with no condensation) |
| Wavelength | 465 nm |
| Weight | 367 g |
| Long_side | 213 mm |
| Short_side | 163 mm |
| Light_emitting_surface_long | 200 mm |
| Light_emitting_surface_short | 150 mm |
